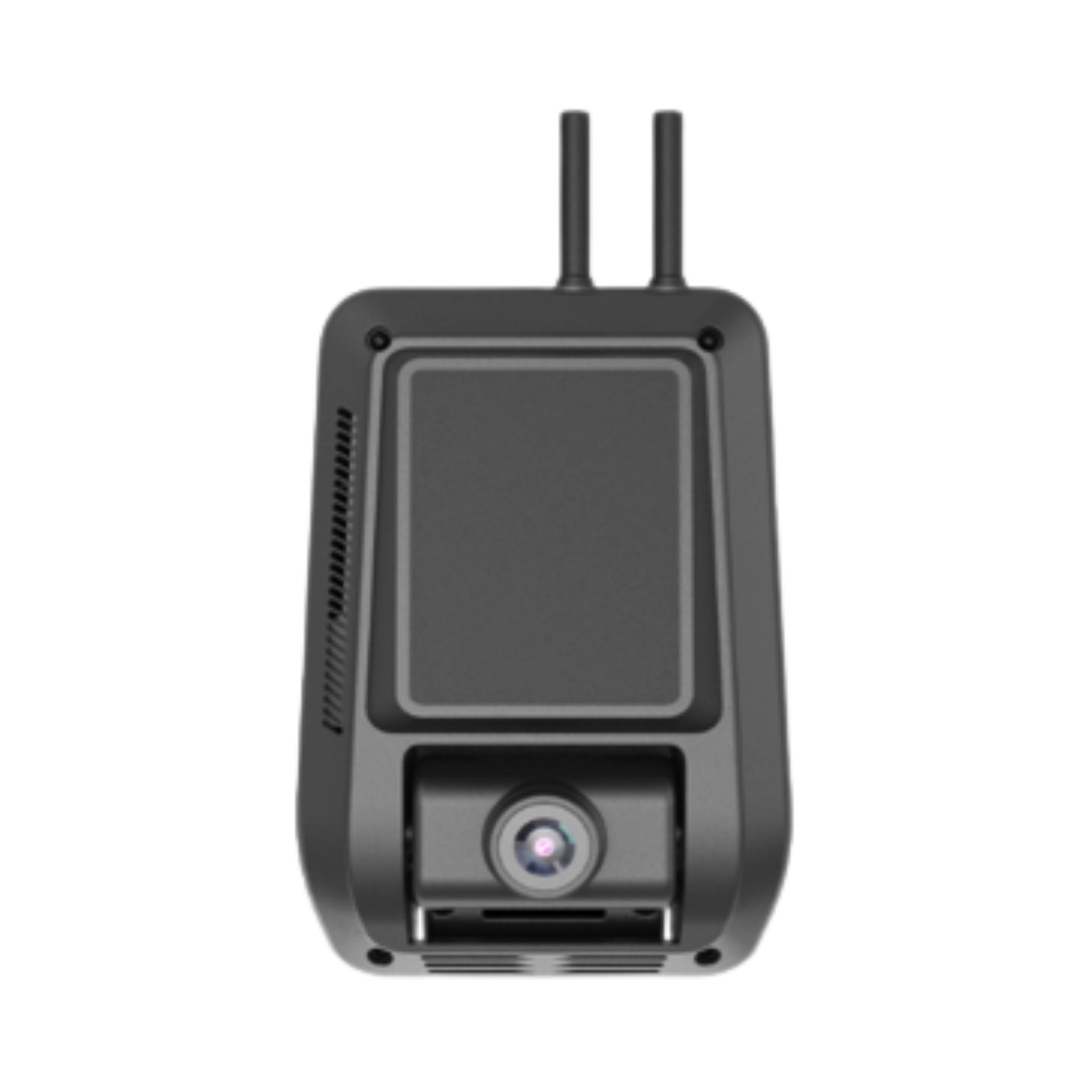

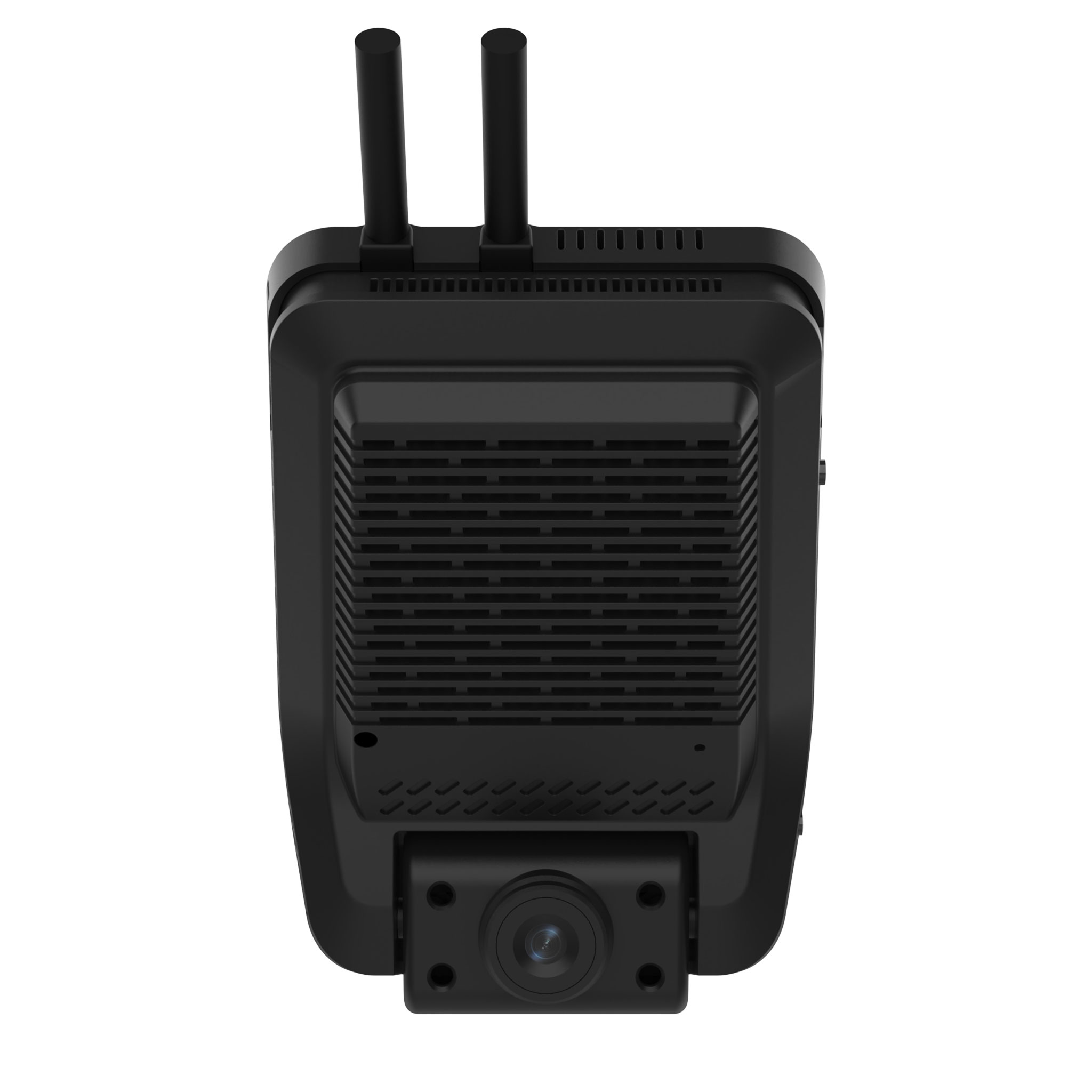

Product Overview
A compact sticky AI terminal with dual 1080P cameras, panoramic cabin monitoring, H.265 encoding, optional RTK positioning, DMS, and ADAS. Compliant with Chinese Ministry standards for commercial vehicle safety and management.
Key Features
- HD Video: Dual 1080P recording (optional 3x720P), H.265/H.264 encoding, IR-enhanced cabin camera
- Precision Positioning: GPS/BeiDou/GLONASS multi-mode (optional RTK or dual-frequency RTK+DR)
- Intelligent Safety DMS: Detects fatigue (eye-closing/yawning), smoking, calling, distraction, obstruction
- Intelligent Safety ADAS: Alerts for forward collision, lane departure, pedestrian detection
- Global Connectivity: 4G CAT1 (optional CAT4), OTA updates
- Stable Power: 9-36V wide voltage input, short-circuit protection, <2W power consumption
- Certifications: Compliant with JT/T 794/808/1076/1078, JT/T905-2014
- Extended Functions: One-touch SOS alert, WiFi debug app, geofencing, remote configuration
| OS/Processor | Linux / CV1812H Dual-core 0.5TOPS |
| Memory | 256MB RAM / 8GB EMMC |
| Cameras | 2x Internal 1080P (MIPI) + 1x Optional 720P (AHD) |
| Encoding | H.265 / H.264 (1080P/20fps) |
| Connectivity | 4G CAT1/CAT4, Optional WiFi/Bluetooth |
| Power Supply | 9-36V DC (<2W Consumption) |
| Ports | 8-pin BMW Power, SOS, Nano SIM, TF Card (Max 512GB), 3x In/1x Out IO |
| Operating Temp | -20℃ ~ +70℃ |
| Dimensions | 80mm x 45mm x 30mm |
| Weight | 185g |
In The Box
1x D701 Unit, 2x Keys, 1x Hardwire Kit, 1x External Cam (Optional)
